Multiple Configurations
A single pump junction can contain information for multiple pump configurations - impeller trims and operating speeds. This is useful to compare different variations of a pump without needing to redefine a new pump junction for every case. The configuration of the pump can easily be changed without losing any information.
Defining Multiple Configurations
When opening the pump configuration, change the Configuration Method from Simple to Multiple. When doing so, an additional user input panel appears on the right hand side of the window.

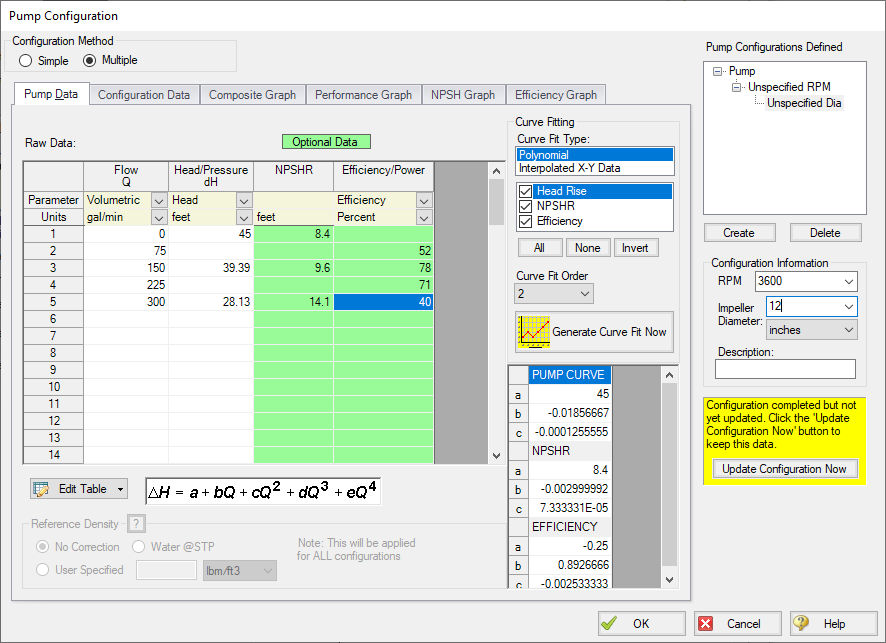

Figure 1: Multiple Configuration Method Selected
In order to make use of the multiple configuration feature, an RPM and Impeller Diameter under Configuration Information should be filled in. A Description can optionally be added. After modifying any information that affects the definition of this configuration the Update Configuration box turns yellow:
Figure 2: Update Configuration
Clicking Update Configuration Now adds the Configuration to the Pump Configurations listed in the top-right.
Figure 3: Current Pump Configurations
To create an additional configuration, click Create.
Figure 4: Creating a new Configuration
The pump curves must be created and curve fit, as with a single configuration pump. After completing this and clicking Update Configuration Now, the new configuration will be created and shown in the Pump Configurations area. Configurations can be edited by selecting them in this area
Figure 5: Editing a Configuration
Now that multiple configurations are available, they can be selected on the Pump Model tab:
Figure 6: Selection of a Configuration
