Output Window

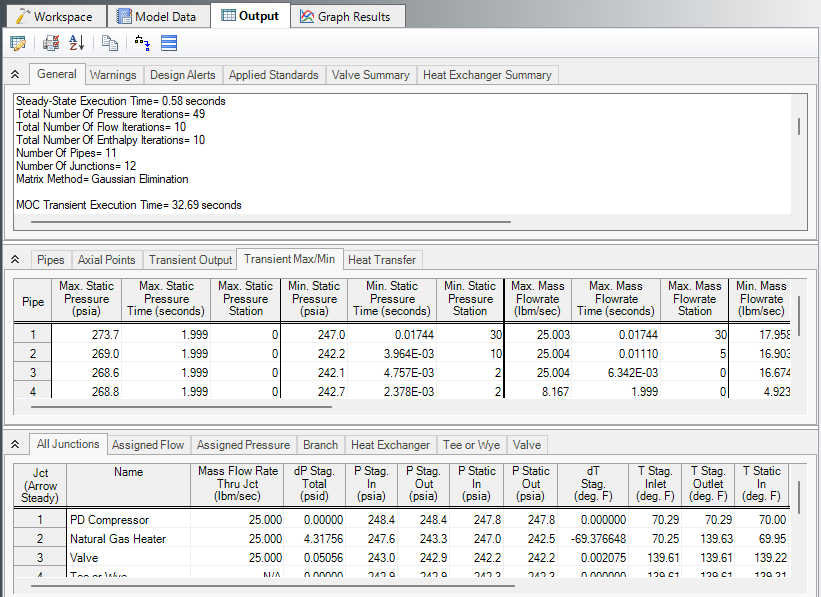

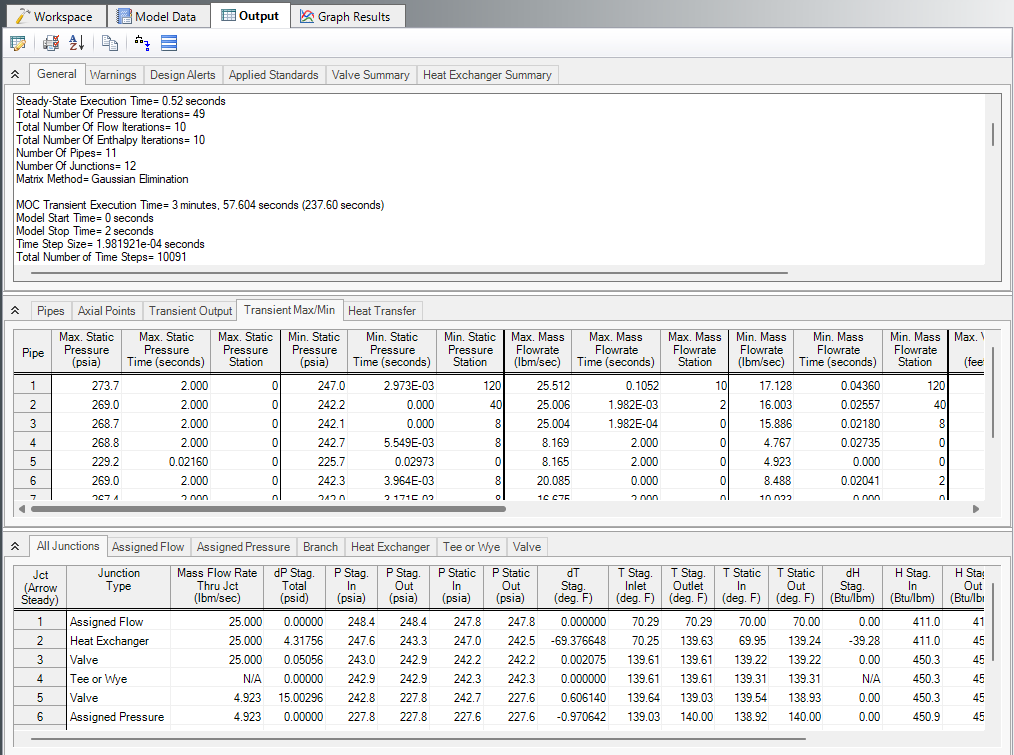

The Output window is the primary vehicle for communicating the results of an analysis in text form (see Figure 1). The Output window follows the same general window organization as the Model Data window.

When a model is run, the Solution Progress window appears. After the solution is obtained, you can view the results in the Output window by clicking the View Output button.

If the information in the Output window is not in the desired format, you can choose Output Control from the Tools menu (or Toolbar) to modify the format. The Output Control lets you specify the parameters, their units, and the order of their display in the Output window.

Data in the Output window can be copied to the clipboard, exported to Excel / other formats, and printed to a PDF or physical printer. The printed output follows the same flexible, organized, and accessible format as the Output window itself. The Print Content window available on the Tools menu (or Toolbar) lets you specify the content to include in the printed Output report and select the font to be used.

The Sort window opened from the Arrange menu (or Toolbar) offers the ability to sort the steady-state Pipe Results or Junction Results tables according to the values in any of the columns. Transient results in the Transient Max/Min tables can be sorted using the right-click context menu.

The Transfer Results to Initial Guess feature on the Edit menu (and Toolbar) sets all pipe and junction initial steady-state flows and pressures equal to the converged results, which causes future runs to converge much faster.

You can view the input data for individual pipes or junctions directly from the Output window. First, if you press the right mouse button on the pipe or junction number in the far left column of the table you will see the Inspection window. Second, if you double-click the pipe or junction number you will open the Properties window in read-only form where you can review input in detail.

General, Pipe, and Junction section display sizes can be changed by the user by clicking and dragging the bars between each section to re-size them. Each section can also be hidden by clicking the arrow in the upper-left of each section.

You can use the zoom feature in the lower right hand corner of the Output window to re-size the text displayed on screen.

Right-click Context Menu Actions

There are several options available when right-clicking on a cell, row header, column header, or entire table in the Output window:

• Column Header

  • Change Units - Quickly redisplay the selected column in a different unit.

  • Sort - Sort the table in Ascending or Descending order on the selected column.

  • Add "Parameter" for all Table Objects to Excel Export Manager - Add this column to the Excel Export Manager.

  • Open Excel Export Manager - Directly open the Excel Export Manager.

  • Delete Column - Removes the parameter from the Output Control.

  • Copy Selected Cell Data - Copies all of the values in the column to the clipboard.

• Row Header

  • Add all Object Parameters to Excel Export Manager - Add this row to the Excel Export Manager.

  • Open Excel Export Manager - Directly open the Excel Export Manager.

  • Find on Workspace - Quickly locate an object on the Workspace.

  • Copy Selected Cell Data - Copies all of the values in the row to the clipboard.

  • Open Properties Window - Opens the properties window for the associated pipe or junction.

• Table (upper left cell)

  • Add Object Table to Excel Export Manager - Add the entire table to the Excel Export Manager.

  • Open Excel Export Manager - Directly open the Excel Export Manager.

  • Copy Selected Cell Data - Copies all of the values in the table to the clipboard.

• Cell

  • Add Object "Parameter" to Excel Export Manager - Add this cell to the Excel Export Manager.

  • Open Excel Export Manager - Directly open the Excel Export Manager.

  • Create Design Alert - Create a Design Alert related to the selected object and value.

  • Copy Selected Cell Data - Copies the value of the cell to the clipboard.

Selections

The Selection tab appears in the Quick Access Panel when viewing the Output Primary Window. Selections can be made in the Output tables by click and dragging your cursor over cells. Entire columns or rows can be selected by clicking on the header cells, and complex selection can be made by using CTRL or SHIFT on the keyboard while clicking. When a selection is made, some basic calculations are performed and displayed in the Selection tab. This includes the count of selected cells, max, min, sum, and mean.

Output Window Updates

Whenever you change the model input, all output windows are erased. This prevents you from changing your input, forgetting to rerun it, and mistaking the previous Output window for the current model's results.

Steady Flow Results

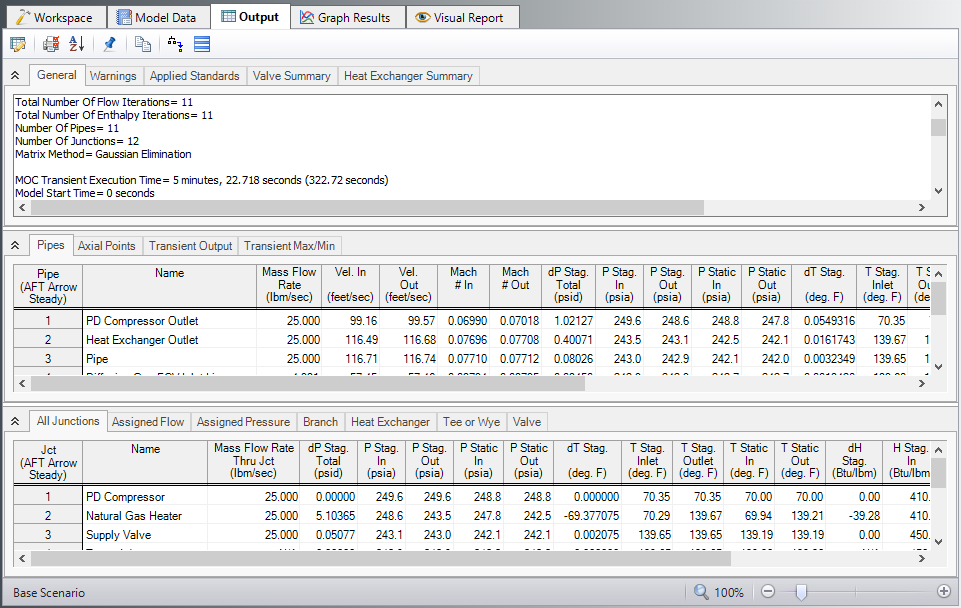

Figure 2 shows the steady flow results in tables for pipes and junctions as specified in the Output Control window. Details of the steady state results at each pipe calculation station can be viewed on the Axial Points tab of the Pipes section.

Transient Flow Results for Pipes

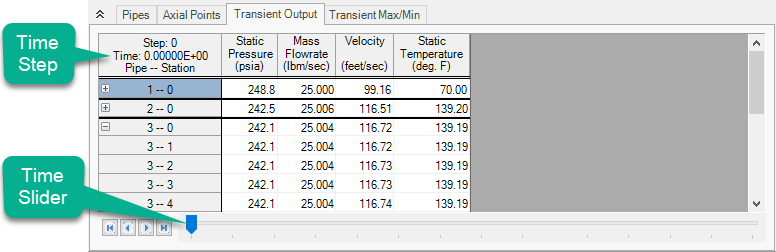

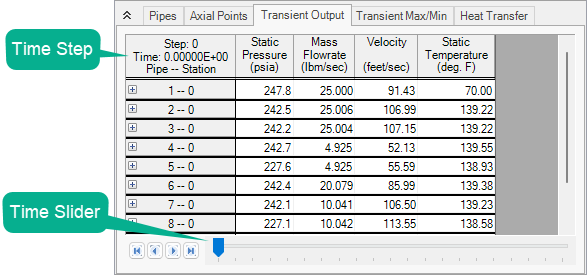

You can review the transient results for any pipe station for any time which was saved to file as specified in the Simulation Duration panel. These results are shown in the Output window Transient Output table (Figure 3).

Figure 3 shows the transient flow results at the initial time step (which is equal to zero here). The columns of data shown in Figure 3 are specified in the Output Control window. Using the Time Slider will change what time step results are displayed.

Note that the pipe stations shown are those saved to the output file.

Transient Max/Min Results for Pipes

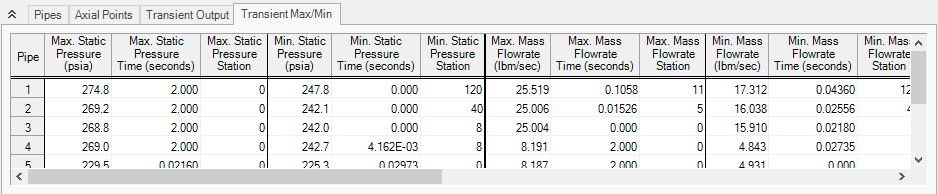

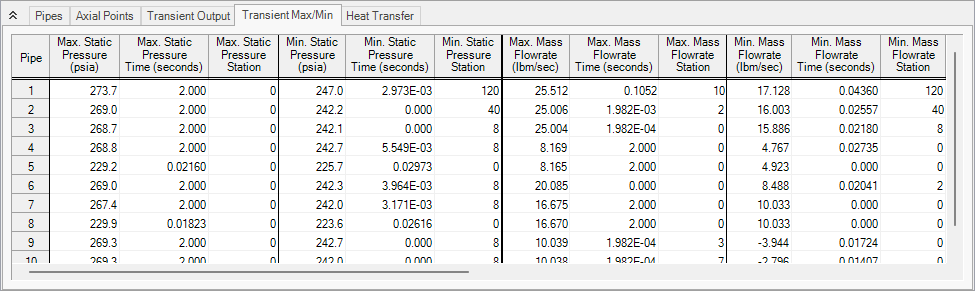

The Transient Max/Min table in the Pipe Output section shows the maximum and minimum values for each parameter in each pipe, the time it occurred at, and the station it occurred at. Thus, for each transient parameter added in the Output Control window, 6 columns will be shown in the Transient Max/Min table. Figure 4 below shows an example.

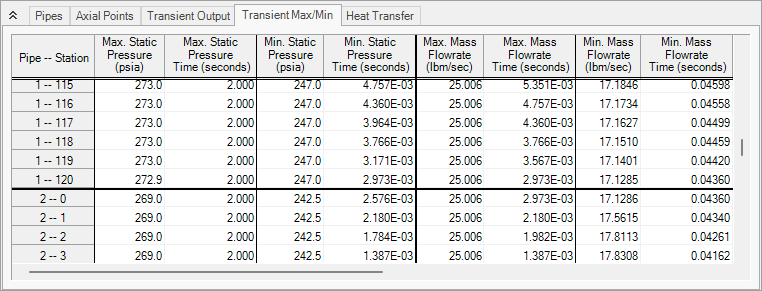

The Format & Action tab in the Output Control window can be used to switch between a detailed or summary view of the Transient Max/Min tab. The default format is the summary version, showing the maximum and minimum values for the whole pipe, as described above. A detailed format is also available, where the maximum and minimum values for each parameter at each station are shown, along with the time they occurred at. Thus, for each transient parameter added in the Output Control window, 4 columns will be shown in the Detailed Transient Max/Min table. Figure 5 below shows an example.

The Transient Max/Min tables will show the true max/min data even if you have opted to save every other time step (or fewer) to the output file, or to save only the inlet and outlet pipe stations. The max/min data is written as the solver is running which accounts for all times steps and pipe stations in the simulation.

Transient Event Messages

When events occur at junctions during the transient simulation, a log of all events is displayed in the two Event Message lists. In the first list events are sorted by junction number. In the second list they are sorted by time. The list includes when check valves close (and re-open), relief valves open, control valves lose control (and regain it), as well as all standard event transients.

Results Diagrams

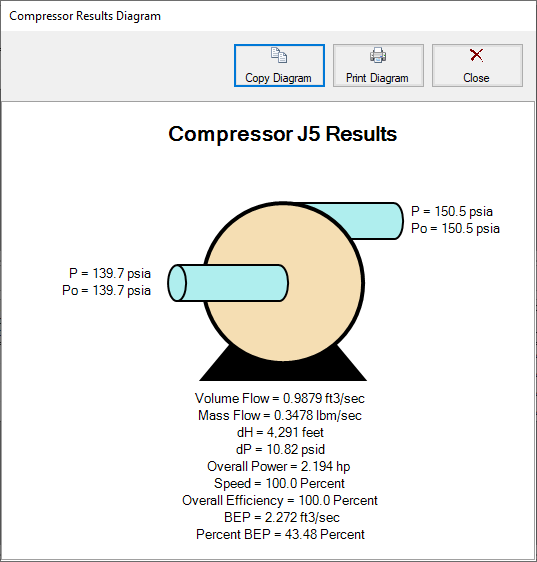

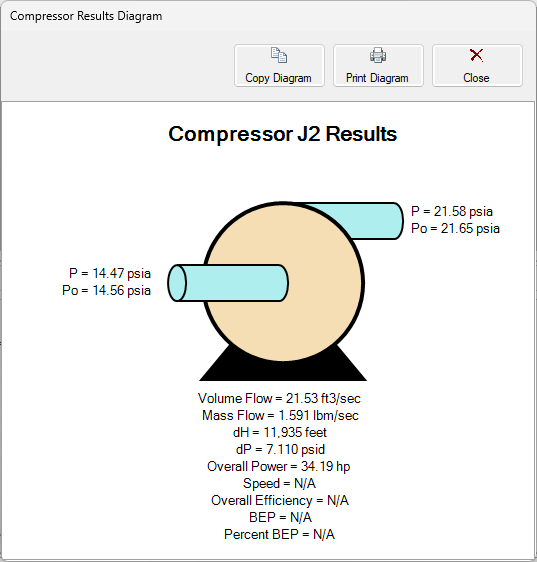

Results diagrams are available for steady-state compressor/fan results (see Figure 6). These diagrams allow you display the information in a more intuitive manner, copy the image of the diagram to your clipboard, or print the diagram. The option to show the results diagram can be found in the compressor/fan summary tab.

Printing and Exporting

Data in the Output window can be:

• Copied to the clipboard

• Exported to Excel or other *.txt file report formats (File > Export)

• Printed as a PDF or sent to a printer
